Drills which use Filter/Clone® Systems
Virtually any rock drill or rotary drill on the market can have the benefits of dust control with Filter/Clone® Systems.
Image Gallery
Size 5 Filter/Clone® dust collector mounted on Ingersoll–Rand DML rotary drill.

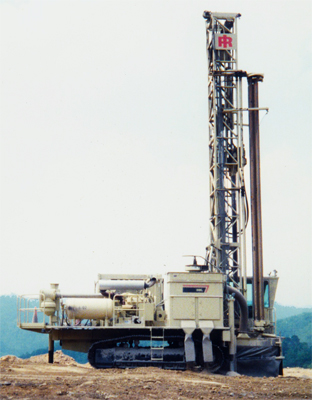

Size 4500 Filter/Clone® dust collector mounted on Ingersoll–Rand DML rotary drill.

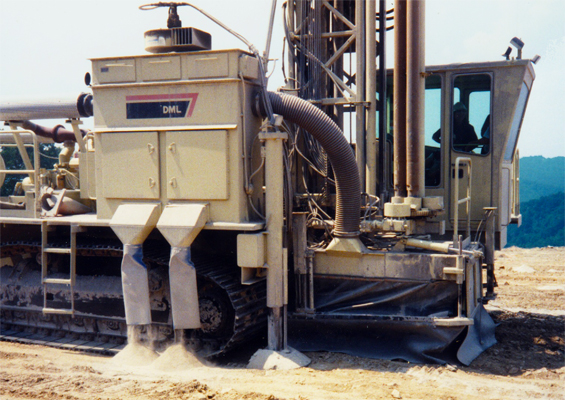

Close–up of Size 4500 Filter/Clone® dust collector mounted on Ingersoll–Rand DML rotary drill.

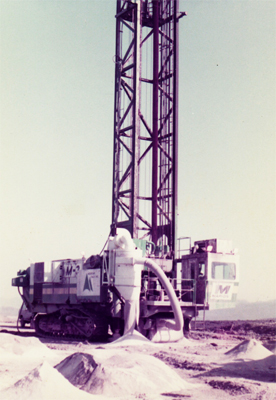

Size 7SB Filter/Clone® dust collector mounted on large Marion rotary blasthole drill.
Size 4500 Filter/Clone® dust collector mounted on Reedrill midrange rotary blasthole drill.

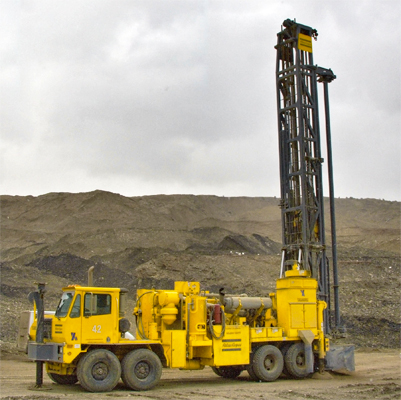

Size 3SB Filter/Clone® dust collector on Ingersoll–Rand T4 truck mounted drill. The hydraulic controlled total collection pickup pot is shown with the tower raised for drilling.
Size 3SB Filter/Clone® dust collector on Ingersoll–Rand T4 truck mounted drill. This shows the flexibility of the suction hose allows the hose to remain attached when the tower is lowered.
Size 2 Filter/Clone® dust collector mounted on Ingersoll–Rand rotary drill using hydraulic up–and–down dust box.
Size 2R4 Filter/Clone® dust collector mounted to the rear of Gardner–Denver SCH–4500 crawler drill. The suction hose can be as much as 35' long without causing major drops in suction capacity.

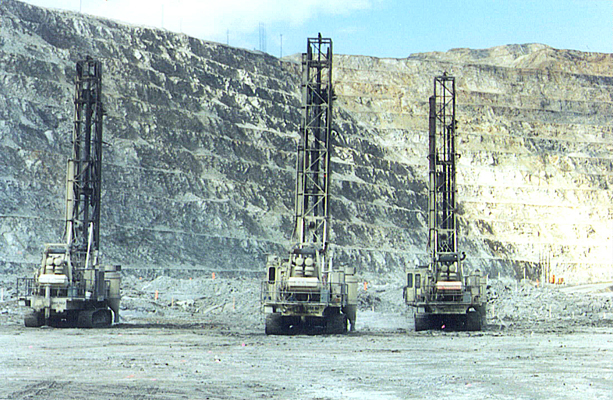

Three old tandem Robbins drills in operation. Lack of dust is made possible by the Size 7 Filter/Clone® cyclonic dust collector mounted on each drill.

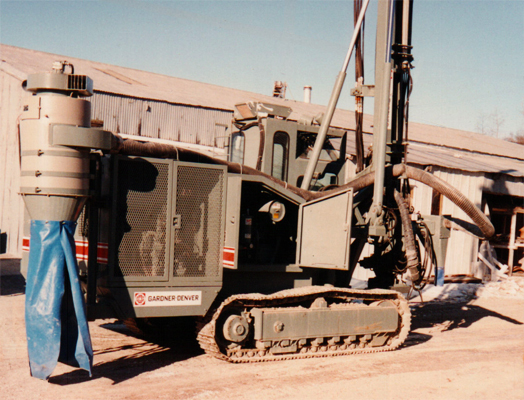

Size 1½ Filter/Clone® dust collector mounted on Gardner–Denver SCH–3500 crawler drill.

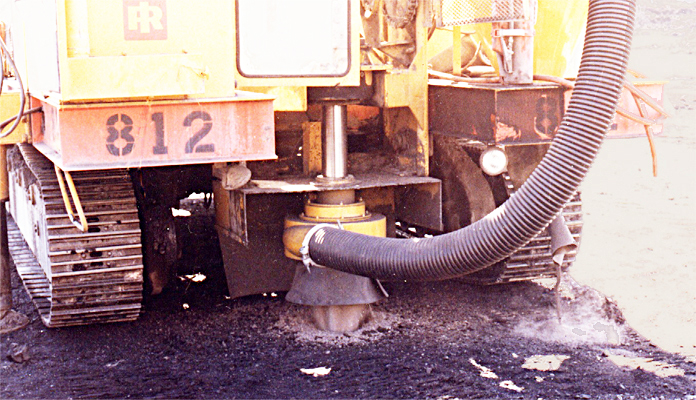

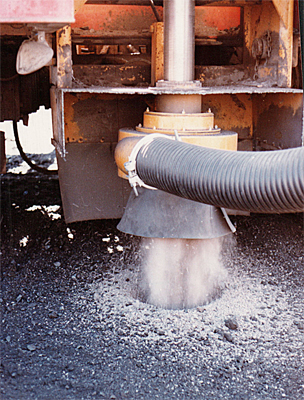

Filter/Clone® dust collector Total Collection pickup pot in operation on Ingersoll–Rand rotary drill. Total collection can usually be achieved when drilling a hole of about 9" or smaller diameter. Very large size hole drilling may require partial chip collection or dust only.
Size 3600 Filter/Clone® dust collector mounted on DM–45 midrange rotary drill manufactured by Atlas–Copco Drilling Solutions, LLC.

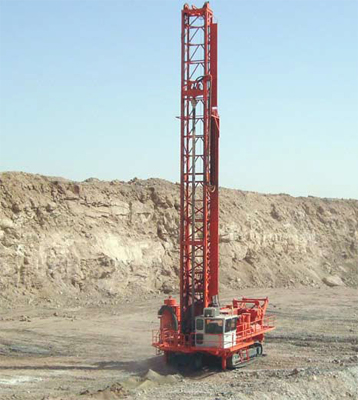

Size 4500 Filter/Clone® dust collector mounted on D50KS rotary drill manufactured by Sandvik Mining and Construction.

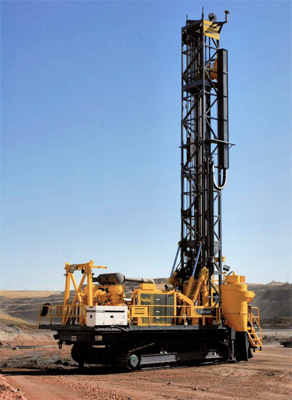

Size 4500 Filter/Clone® dust collector mounted on MD6290 rotary drill manufactured by Caterpillar Global Mining, LLC.
Size 7SB Filter/Clone® dust collector mounted on D90KS large–hole rotary drill manufactured by Sandvik Mining and Construction.
Size 3600 Filter/Clone® dust collector mounted on DM45 low pressure rotary drill manufactured by Atlas–Copco Drilling Solutions, LLC.
Size 4500 Filter/Clone® dust collector mounted on midrange rotary drill manufactured by Caterpillar Global Mining, LLC.
Size 3SB Filter/Clone® dust collector mounted on Ingersoll–Rand DM30 rotary drill.

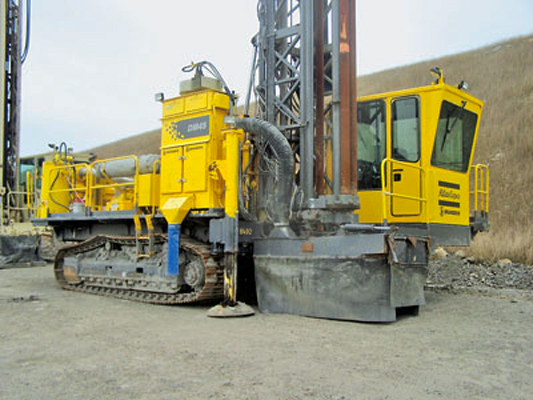

Size 3600 Filter/Clone® dust collector mounted on DM45 rotary drill manufactured by Atlas–Copco Drilling Solutions, LLC.

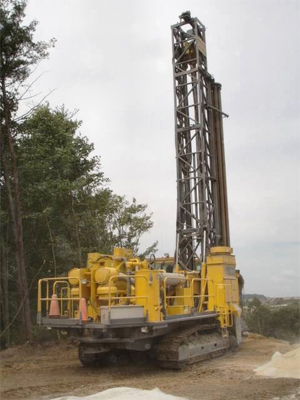

Size 4500 Filter/Clone® dust collector mounted on DML rotary drill manufactured by Atlas–Copco Drilling Solutions, LLC.
Size 7SB Filter/Clone® dust collector mounted on Ingersoll–Rand DML–SP single pass rotary drill.
Size 7SB Filter/Clone® dust collector mounted on DMM3 large rotary blasthole drill manufactured by Atlas–Copco Drilling Solutions, LLC.
Size 3IR Filter/Clone® total collection pickup pot on Ingersoll-Rand drill. Size 3IR unit is collecting all material exiting the drill hole.

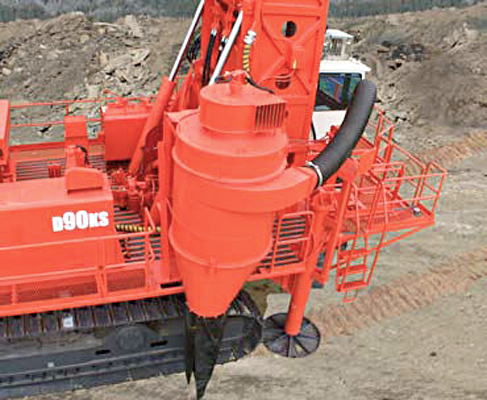

Size 7SB Filter/Clone® dust collector mounted on D90KS rotary drill manufactured by Sandvik Mining and Construction.
Size 3600 Filter/Clone® dust collector mounted on T4 blasthole drill manufactured by Atlas–Copco Drilling Solutions, LLC.
Size 4500 Filter/Clone® dust collector mounted on Ingersoll–Rand DML rotary drill.
Click image to enlarge and read description
Below are just some of the over 70 different drill models which utilize Filter/Clone® Dust Collectors.
Atlas–Copco
- DM30, DM45, T4BH, DML, DML–SP, PV230, PV235, PV275, PV271, PV351, CDM75E, DMM3
- Bucyrus–Erie
- 35R, 45R, 49R, 50R, 60R, 61R, 67R
- Caterpillar
- MD6240, MD6290, MD6640
- Chicago–Pneumatic: CP650
- Driltech
- D25K, D35K, D40K, D60K, D75K, D245S
- Gardner–Denver
- RDC–16, SCH–2500, SCH–3500, SCH–4500, GD–25, GD–45, GD–70, GD–100, GD120
- Ingersoll–Rand
- T4BH, DM–25,35, DM–36,46 DML, DMM, DMM3, DMH, DM–60, ECM–450, CM250
- Marion: M4, M5
- Reedrill: SK25, SK35
- Robbins
- R10, R10HD, R12, R41, R60
- Sandvik
- DR540, DR560, DR580, D25KS, D245S, D45KS, D50KS, D55SP, D75KS, D90KS, DR460, 1175E, 1190E
- Sullivan (Joy)
- Mustang, Ram2, Ram3, Stallion
Contact Joe Tipton, Inc. or a Dealer in your area to determine which Filter/Clone® System will improve your drilling operations.
